| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | NK |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 5000 sets/mouth |

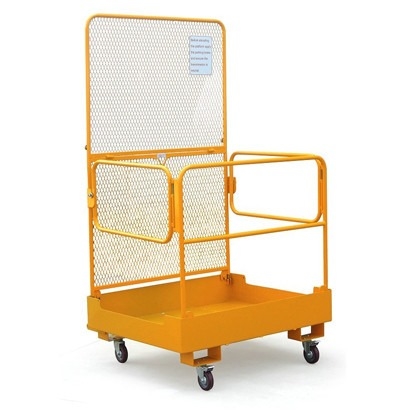

| Product Name: | NK30A NK30B NK30C Forldable Maintenance Platform Loading Capacity 300kg | Load Capacity: | 300kg |
|---|---|---|---|
| Platform Size: | 1000X1000mm | Lift Height: | 2000mm |
| Fork Space(inner Side): | 471mm | Single Fork Size: | 200X100mm |
| Certification: | CE,ISO9001 | Net Weight: | 108Kg |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| Highlight: | 300kg Industrial Material Handling Equipment,pm28 Industrial Material Handling Equipment,gn48 maintenance platform |
||
Feature:
Equipped with safety pin in the open door columns, antiskid table-board and bottom osculum, impact-proof head guardrail, ensure safety.
Manned platforms through security long pin and chains were fixed on the fork, ensure not slip.

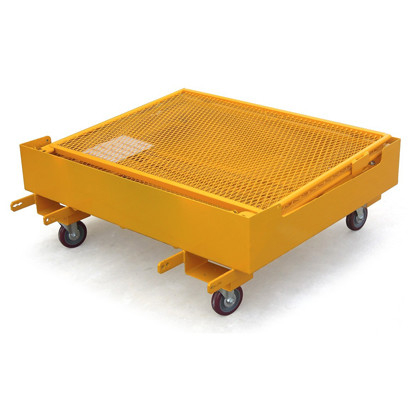

Easy to dismantle and installation, less storage space.
The European Union pm28 and gn48 safety and health standards.
Optional universal casters, convenient to move. Optional box maintenance tools.
Used in upper air work and maintenance work.
Specification:
| Model | NK30A | NK30B | NK30C | |
| rated load weight | (kg) | 300 | 300 | 300 |
| manned platform size (length*width) | (mm) | 950×950 | 1200×1000 | 1000×1000 |
| Lift height | (mm) | 2000 | 2000 | 2000 |
| fork space(inner side) | (mm) | 420 | 747 | 471 |
| Single fork size(length*width) | (mm) | 200×100 | 200×100 | 200×100 |
| Net weight | (kg) | 99 | 120 | 108 |
