| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | ISO9001/ CE |
| Model Number: | ML1000 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Set/Month |

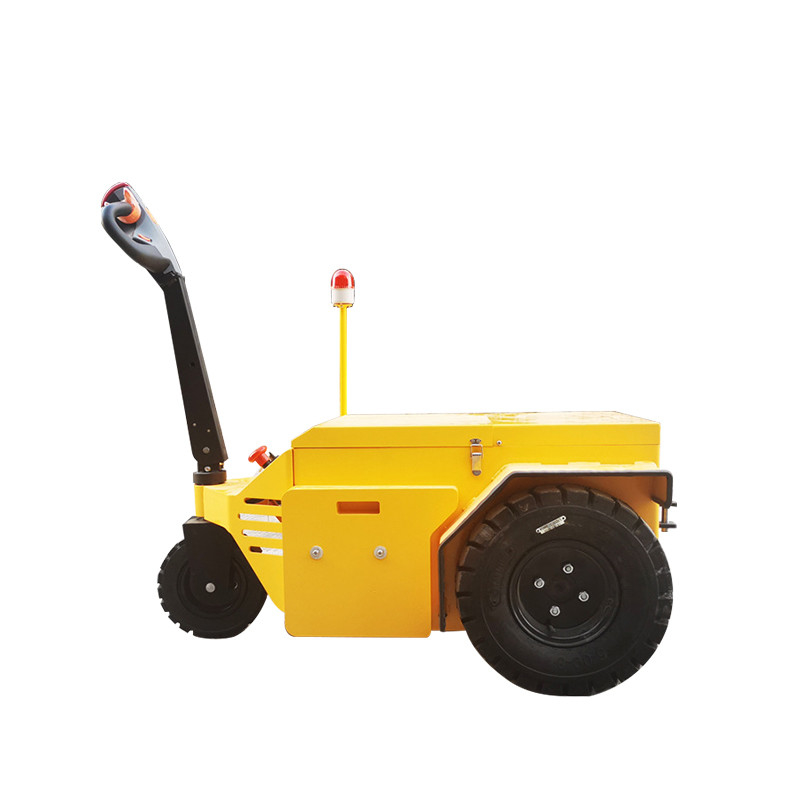

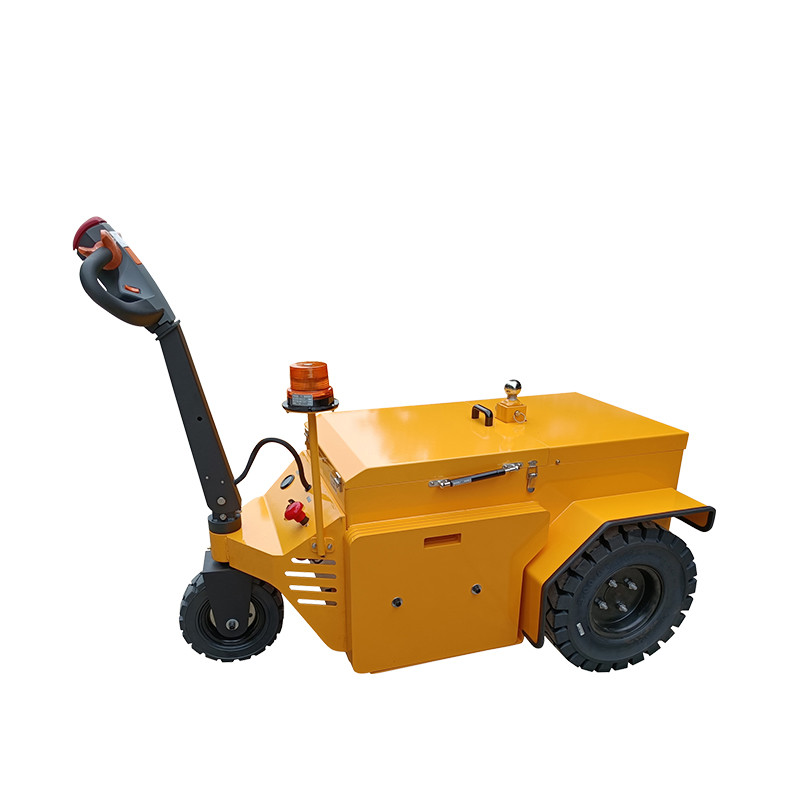

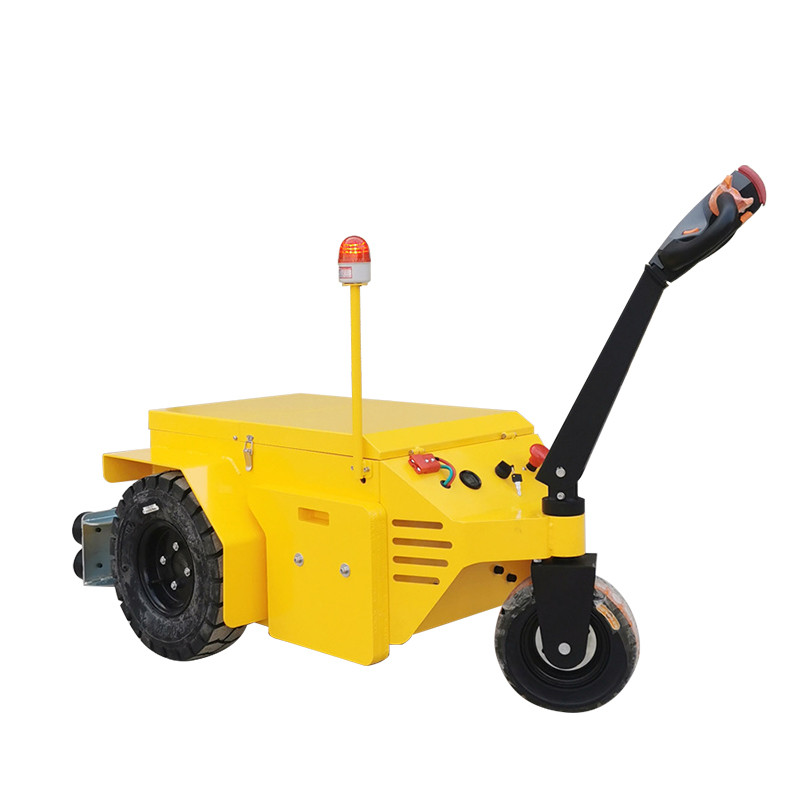

| Product Name: | Sinolift ML1000 Electric Tow Tractor | Rated Loading Capacity: | 3000kg |
|---|---|---|---|
| Power Souce: | AC Motor | Type: | Electric Tow Tractor |
| Color: | Red,Green,Blue,White Etc | Overall Dimensions: | 1490*820*1350mm |
| Operation Type: | Stand-on | Weight: | 1450kg |
| Battery: | D-300A 24V | Lift Drive / Actuation: | Electric Motor |
| After-sales Service Provided: | Video Technical Support,Free Spare Parts | Warranty: | 1 Year |
|
Model |
|
ML1000L |
ML1200L |
|
Rated Traction Load |
kg |
10000 |
12000 |
|
Rated Traction Force |
N |
4000 |
5000 |
|
Wheelbase |
mm |
1070 |
1070 |
|
Weight (including battery) |
kg |
780 |
820 |
|
Battery Weight |
kg |
206 |
400 |
|
Drive Wheel Size (Diameter x Width) |
mm |
2XФ450X117 |
2XФ450X117 |
|
Load Wheel Size (Diameter x Width) |
mm |
Ф300X100 |
Ф300X100 |
|
Number of Drive/Load Wheels (X = Drive Wheels) |
mm |
2X/1 |
2X/1 |
|
Front Track, Drive End |
mm |
460 |
460 |
|
Overall Height |
mm |
1225 |
1225 |
|
Handle Height at Operating Position |
mm |
950/1200 |
950/1200 |
|
Coupler Height Range |
mm |
295/395 |
295/395 |
|
Overall Length |
mm |
1705 |
1705 |
|
Overall Width |
mm |
870 |
870 |
|
Minimum Ground Clearance |
mm |
100 |
100 |
|
Turning Radius |
mm |
1370 |
1370 |
|
Travel Speed, Loaded/Unloaded |
km/h |
2~3 |
2~3 |
|
Maximum Traction Force |
N |
7000 |
8000 |
|
Gradeability, Loaded/Unloaded |
% |
3/6 |
3/6 |
|
Drive Motor Rated Power (5260 min) |
V/kw |
48/3.0 |
48/3.5 |
|
Charger (External) |
V/A |
48/25 |
48/30 |
|
Battery Voltage/Nominal Capacity (K20) |
V/Ah |
48/157 |
48/210 |
|
Battery Weight |
kg |
206 |
400 |
|
Drive Control Type |
|
AC |
AC |
|
Noise Level |
dB(A) |
<70 |
<70 |
