| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | EFR |
| Minimum Order Quantity: | 1 UNIT |
| Price: | $1699 |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100 |
| Product Name: | The EFR Media Roll Lifters | Capacity: | 300Kg |
|---|---|---|---|
| Max. Lifting Height: | 1500mm | Max. Roll Diameter: | 410mm |
| Load Center: | 350mm | Wheelbase: | 612mm |
| Key Words: | Roll Lifter |

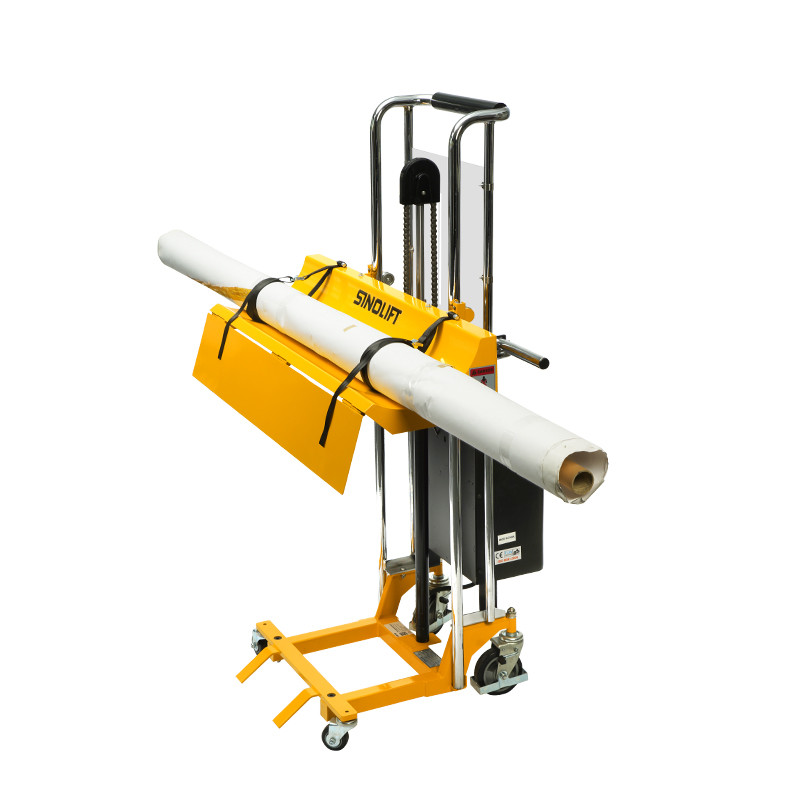

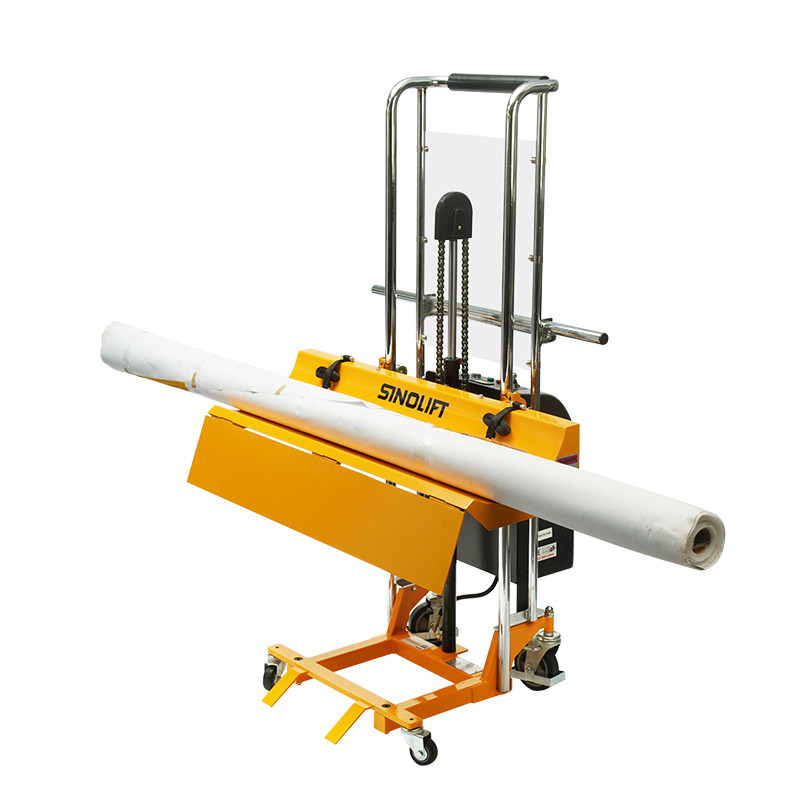

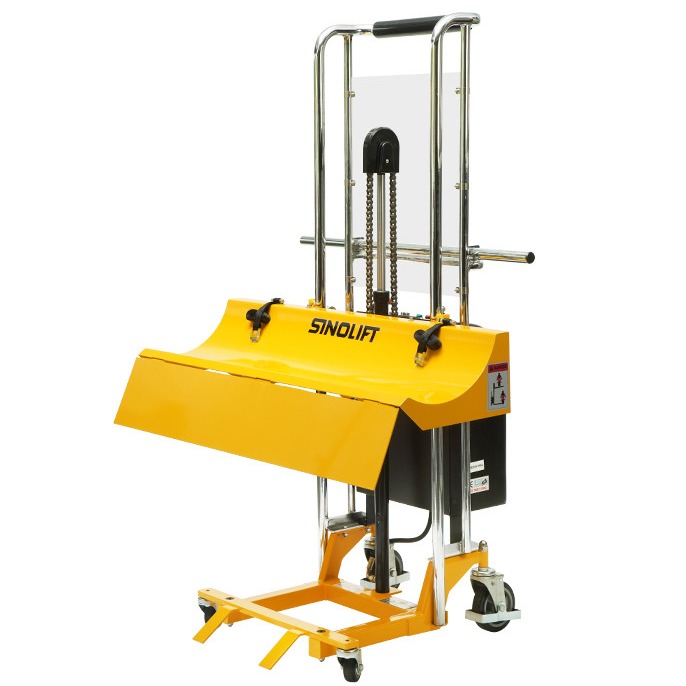

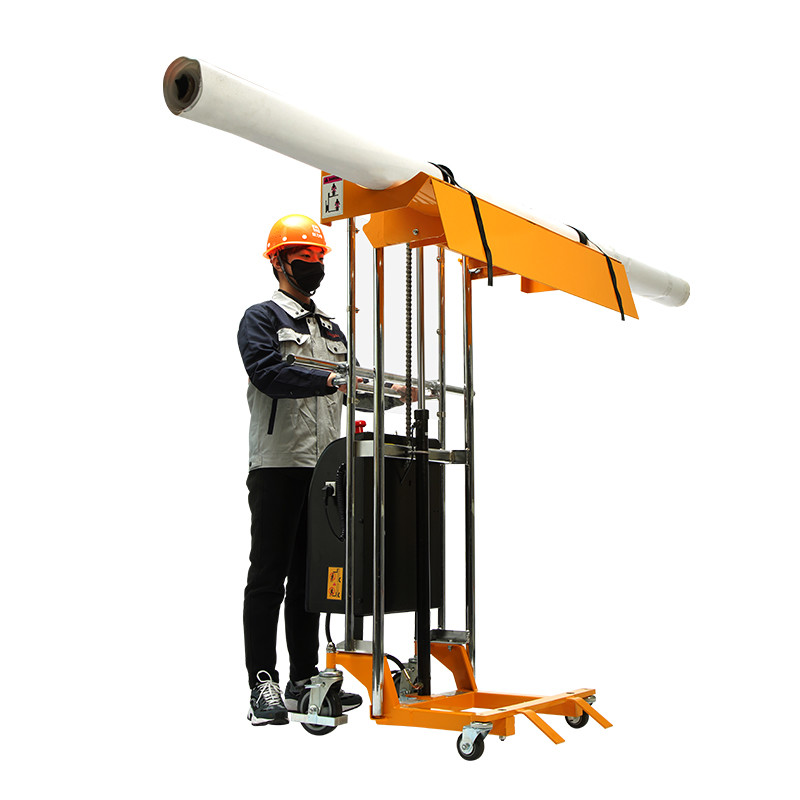

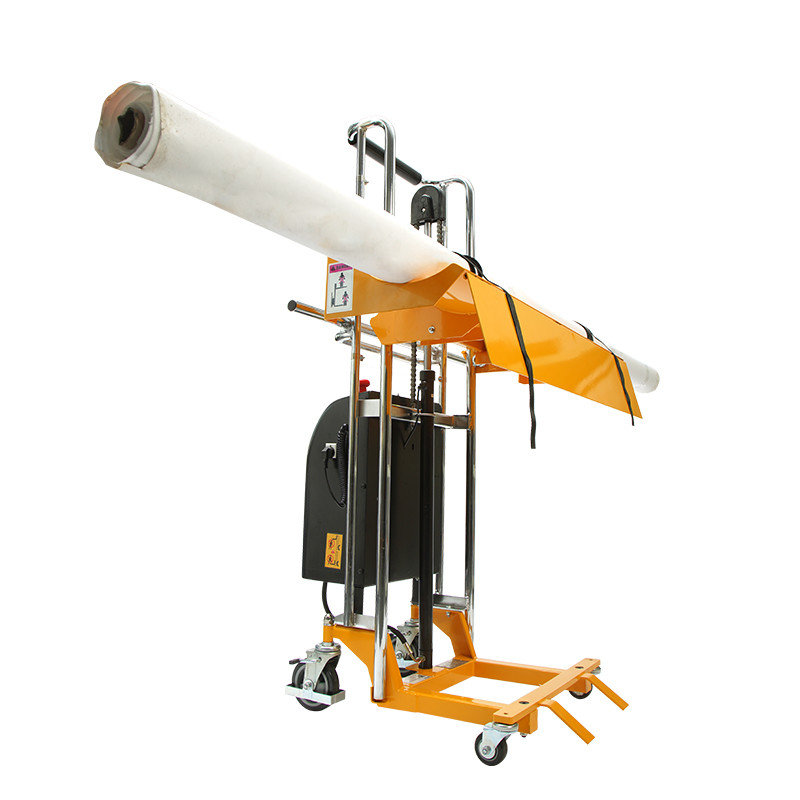

SINOLIFT The EFR Media Roll Lifters
This versatile lifter fits laminators and many other printers requiring 54"lift height.
The power DC motor enables users to effortlessly lift rolls as heavy as 660 lbs. (300kg)) and as wide as 13 feet (400 cm.)
The flat roll loading tray fits most laminators and easily reaches the upper loading shaft height. Two adjustable roll
wedges position rolls on the tray and can be easily removed for loading and unloading.
· Powerful DC motor easily lifts and lowers rolls, eliminating manual labor and power lift reduces roll changeover time
· Lifts rolls up to 1370mm(54” )to easily load and unload rolls onto the laminators
· Thin flat roll tray easily fits into the side of the roll loading area on laminators
· Pair of heavy-duty rear swivel casters with easy step-on locking brake
· Reduces on-the-job injuries and enables all workers to move heavy rolls
· User-friendly operation avoids costly and dangerous handling mistakes that damage media
· Rugged construction ensures long lifter life
· Single-person operation saves labor and time
| Model | EFR3085 | EFR3120 | EFR3150 | |||
| Roll Load Capacity | kg(lbs) | 300(660) | 300(660) | 300(660) | ||
| Load Center | c | mm(inch) | 350(13.75") | 350(13.75") | 350(13.75") | |
| Wheelbase | y | mm(inch) | 612(24.09") | 612(24.09") | 612(24.09") | |
| Bottom Fork Clearance | h1 | mm(inch) | 115(4.53") | 115(4.53") | 115(4.53") | |
| Max. Lifting Height | h2 | mm(inch) | 850(33.46") | 1200(47.24") | 1500(59") | |
| Max. Roll Diameter | 2R | mm(inch) | 410(16.14") | 410(16.14") | 410(16.14") | |
| Max. Roll Width | m(inch) | 5(16'5") | 5(16'5") | 5(16'5") | ||
| Overall Length | l | mm(inch) | 974(38.34") | 926.5(36.47") | 974(38.34") | |
| Overall Width | w | mm(inch) | 1208 (47.56") | 1208 (47.56") | 1208 (47.56") | |
| Overall Height | h | mm(inch) | 1122(44.17") | 1475(58.07") | 1775(70") | |
| Width of Loading Tray | w1 | mm(inch) | 1200(47.24") | 1200(47.24") | 1200(47.24") | |
| W | Width of Handrail | w2 | mm(inch) | 1200(47.24") | 1200(47.24") | 1200(47.24") |
| Width of Load Frame Cross Member | w3 | mm(inch) | 680(26.77") | 680(26.77") | 680(26.77") | |
| Load Wheel (Swivel) | A | mm(inch) | Φ75x(Ø3"x1.57") | Φ75x40(Ø3"x1.57") | Φ75x40(Ø3"x1.57") | |
| Rear Wheel (Swivel) | B | mm(inch) | Φ150X40(Ø5"x1.57") | Φ150X40(Ø5"x1.57") | Φ150X40(Ø5"x1.57") | |
| Battery (Maintenance-free Lead Acid) | V/Ah | 12/60 | 12/60 | 12/60 | ||
| Charger | V/A | 12/10 | 12/10 | 12/10 | ||
| Weight | kg(lbs) | 93(205) | 123(271) | 153(337) |
