| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | CBD |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 sets/mouth |
| Product Name: | SINOLIFT CBD20Li Full Electric Pallet Truck Capacity 2000kg | Driving Style: | Pedestrian |
|---|---|---|---|
| Load Capacity Q: | 2000kg | Load Center C: | 600mm |
| Overall Length: | 1780mm | Overall Width: | 690mm |
| Overall Height: | 1310mm | Power Of Driving Motor: | 1.5kw |
| Power Of Lift Motor: | 2.2kw | Net Weight: | 350kg |
| Warranty: | 1 Year | After Service: | On-line Service,free Spart Parts |

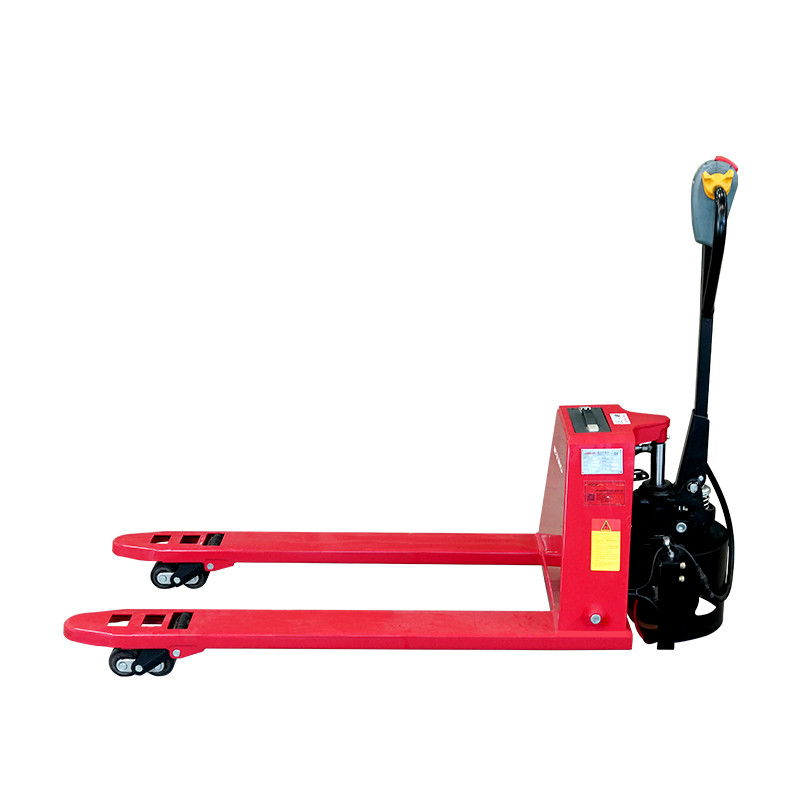

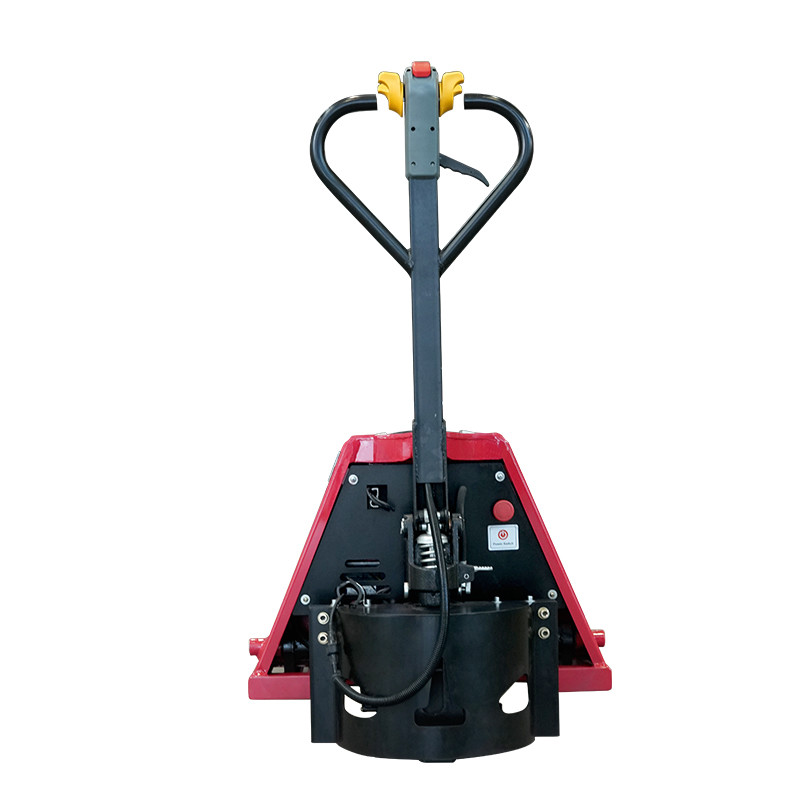

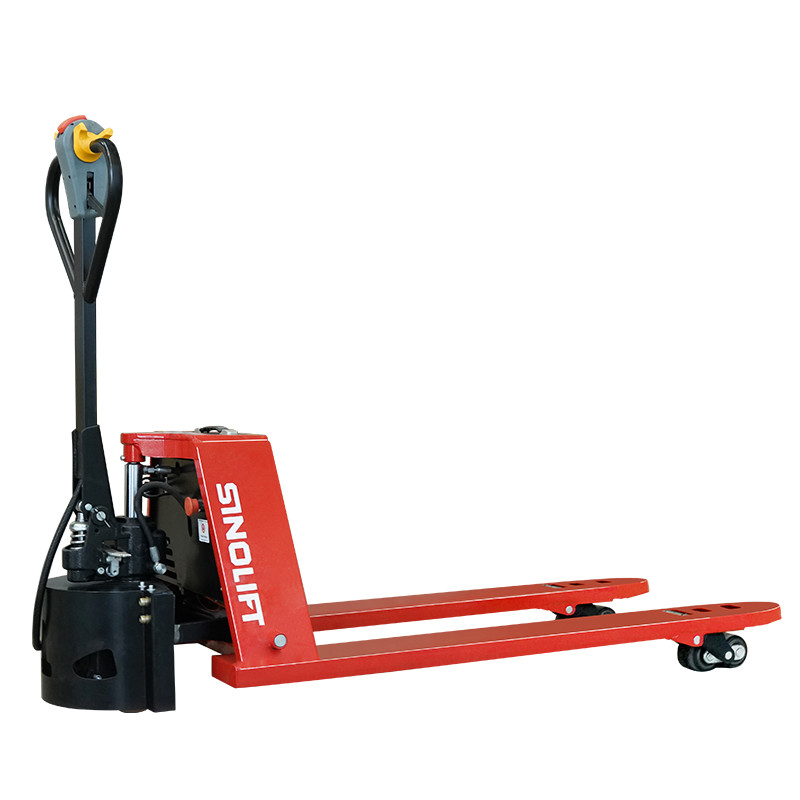

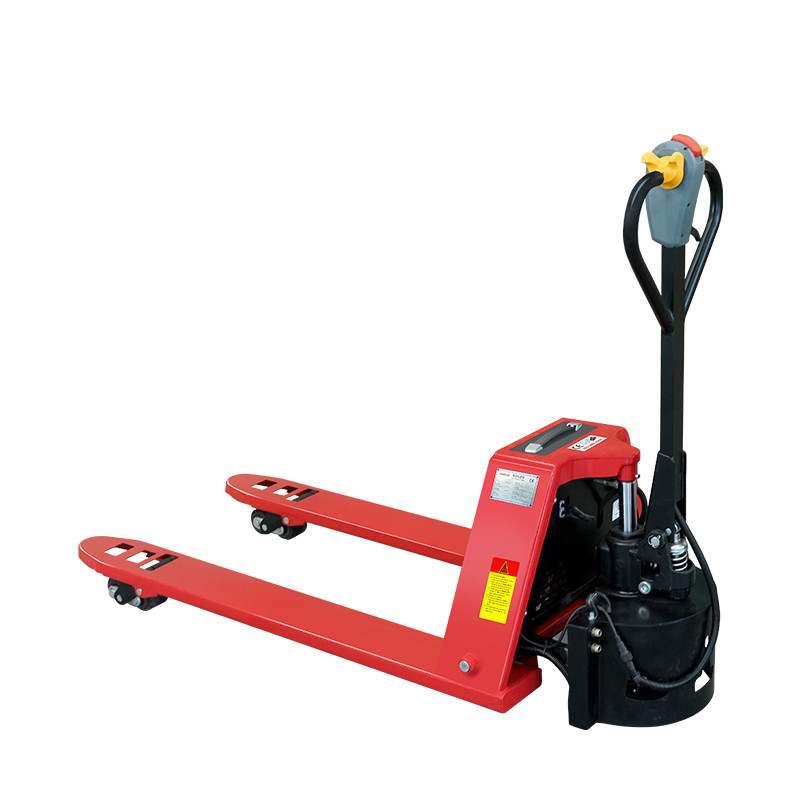

The CBD20Li is an electric pallet truck powered by a lithium ion battery, making it ideal for efficiently transporting goods over short distances. Unlike traditional manual pallet trucks, the CBD20Li utilizes electric power for both lifting and moving cargo. Its compact fork to face design allows it to easily navigate tight spaces, making it perfect for use in stores, commercial centers, and other confined environments. We support customization needs, if you have any customization needs please feel free to contact us
| Model | CBD20Li-712 | CBD20Li-511 | ||
| Type of Operation | Walkie | Walkie | ||
| Steering Mode | Mechanical | Mechanical | ||
| Load Capacity / Rated Load | Q | kg | 2000 | 2000 |
| Load Center Distance | C | mm | 600 | 2000 |
| Wheel Base | y | mm | 1318 | 1248 |
| Total Weight (Include Battery) | kg | 135 | 130 | |
| Overall Length | L1 | mm | 1686 | 1616 |
| Overall Width | W1 | mm | 685 | 550 |
| Fork Dimension | I/e/s | mm | 1220 x150x45 | 1150x150x45 |
| Width of Fork | b2 | mm | 685 | 550 |
| Min. Fork Height | h3 | mm | 80 | 80 |
| Lift Height | h2 | mm | 195 | 195 |
| Ground Clearance at Center of Wheelbase | m1 | mm | 35 | 35 |
| Height of Operating Handlebar (Max.) | h14 | mm | 1245 | 1245 |
| Turning Radius | Wa | mm | 1575 | 1520 |
| Aisle Width for Lengthways (Pallet Size1000*1200) | Ast | mm | 2375 | 2312 |
| Aisle Width for Lengthways (Pallet Size 800*1200) | Ast | mm | 2205 | 2181 |
| Tyre Type | Polyurethane | Polyurethane | ||
| Tyre Size (Front) | mm | p 78x70 | p 78x70 | |
| Tyre Size (Driving Wheel) | mm | p 160x50 | p 160x50 | |
| Wheels Quantity, Front/Rear(x=Driving Wheel) | 2/1x | 2/1x | ||
| Drive Damping Method | / | / | ||
| Traveling Speed (laden/unladen) | Km/h | 4.3/4.8 | 4.3/4.8 | |
| Lifting Speed (laden/unladen) | mm/s | 20/25 | 20/25 | |
| Lowering Speed (laden/unladen) | ?>1s | ?>1s | ||
| Max.Gradient Performance (laden/unladen) | % | 5/10 | 5/10 | |
| Paking/Service Brake Type | Electromagnetic | Electromagnetic | ||
| Drive Motor (DC) | Kw | 0.8 | 0.8 | |
| Lifting Motor (DC) | Kw | 0.8 | 0.8 | |
| Battery Voltage/Capacity K5 | V/Ah | 48/16 | 48/16 | |
| Battery Weight | kg | 6.6 | 6.6 |
