| Place of Origin: | China |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | CQD16M CQD20M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 sets/mouth |

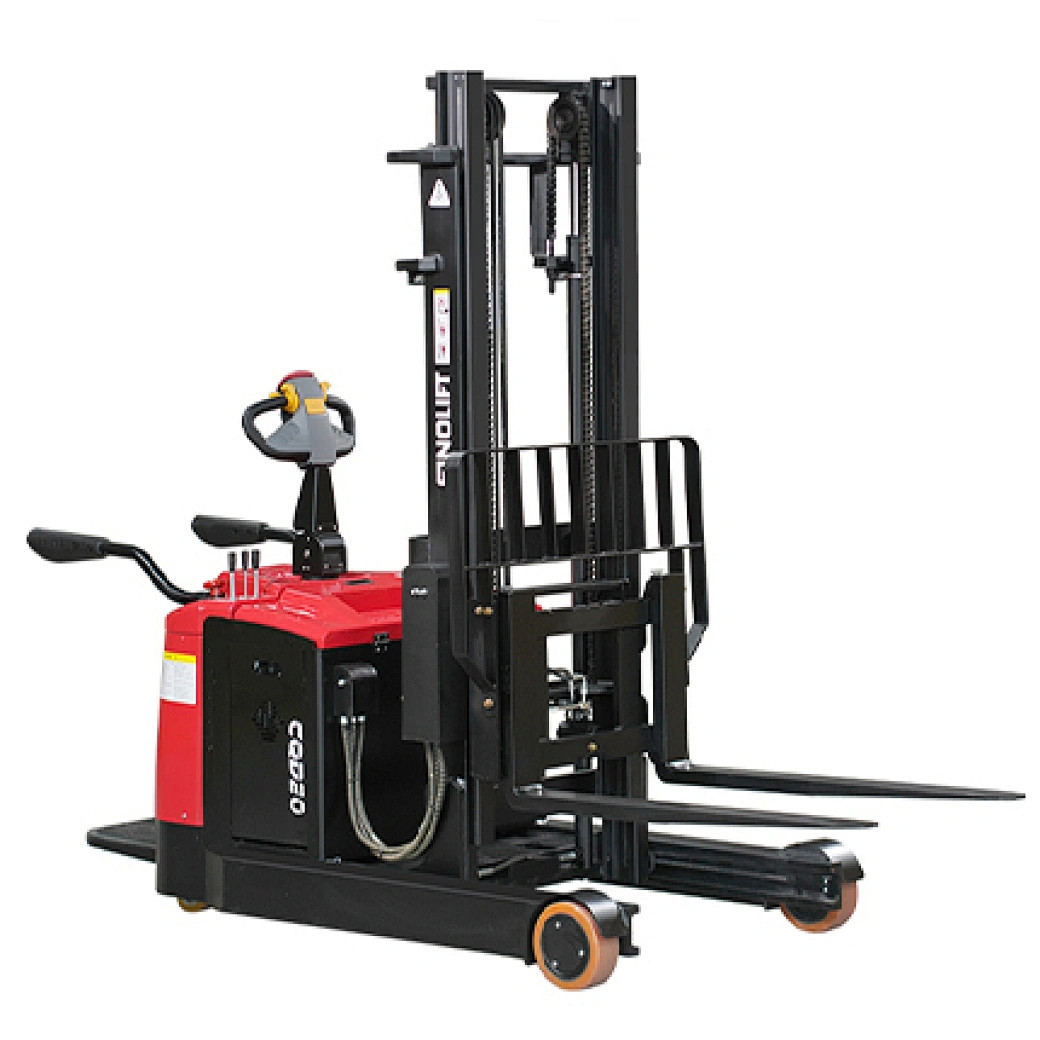

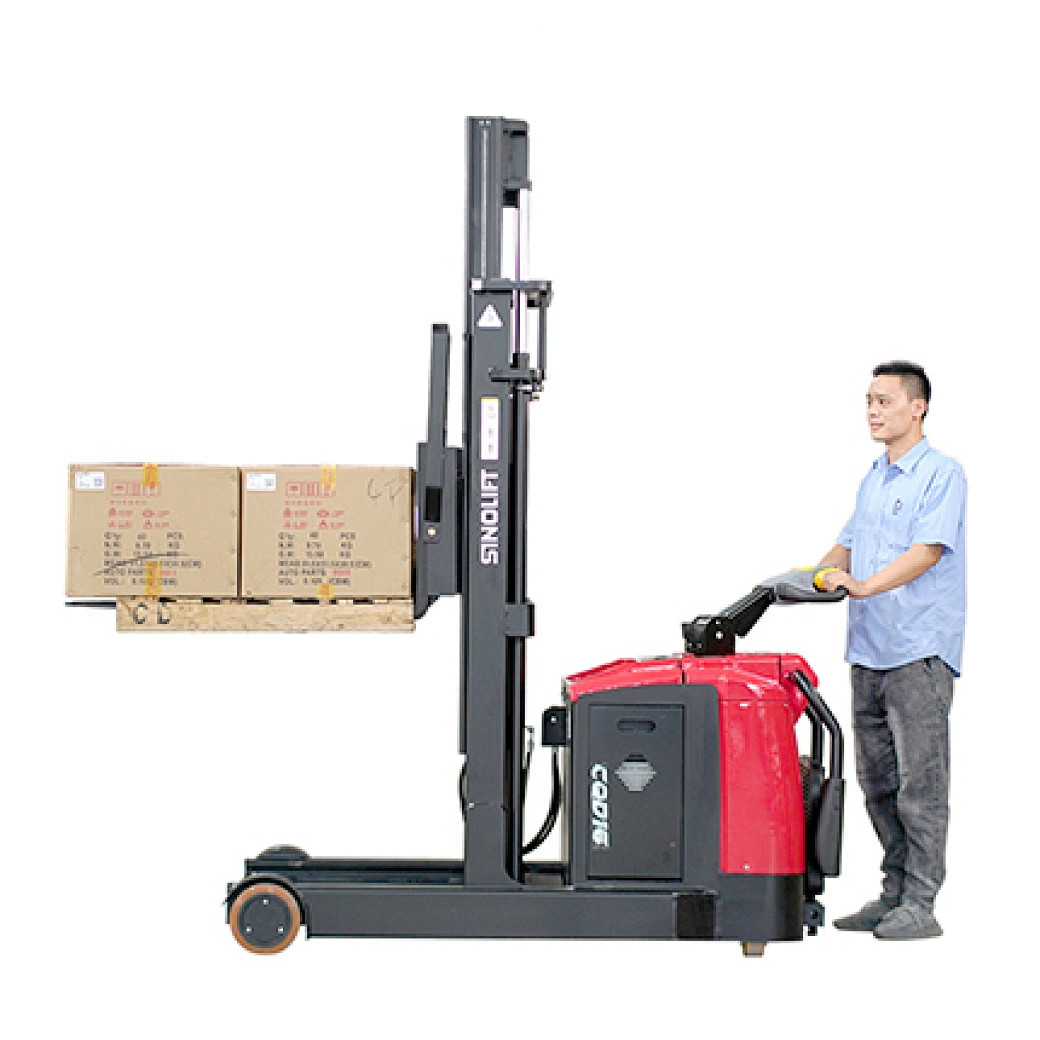

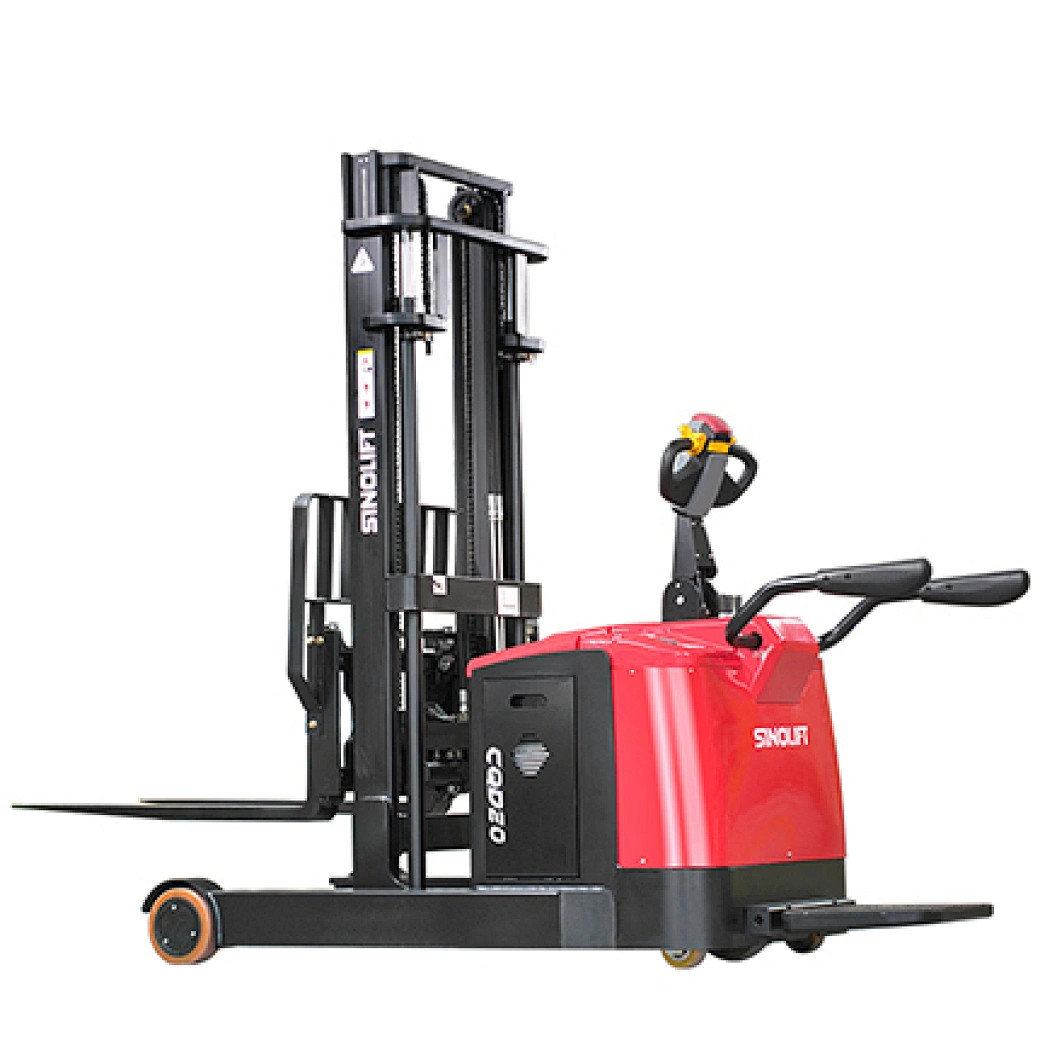

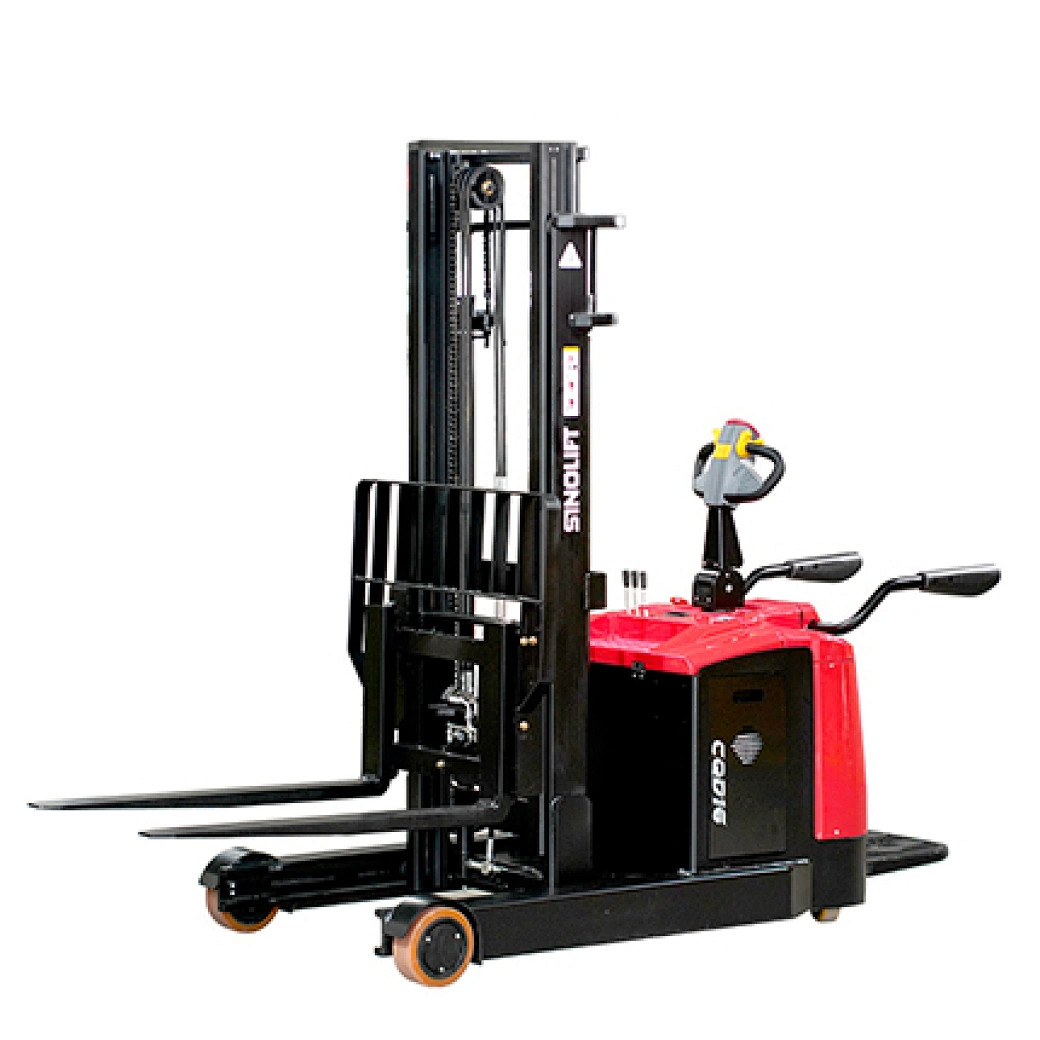

| Product Name: | Sinolift CQD16M CQD20M Electric Reach Truck | Driving Style: | Pedestrian |
|---|---|---|---|
| Load Capacity Q: | 5000kg | Load Center C: | 600mm |
| Overall Length: | 1780mm | Overall Width: | 690mm |
| Overall Height: | 1310mm | Power Of Driving Motor: | 1.5kw |
| Power Of Lift Motor: | 2.2kw | Net Weight: | 350kg |
| Warranty: | 1 Year | After Service: | On-line Service,free Spart Parts |
With Max. capacities to 2000kg, the CQD16M/CQD20M models are built to be the best, most reliable narrow aisle walkie reach trucks in the industry.
| Identification | 1.1 | Manufacture's type designation | SINOLIFT | |||
| 1.2 | Model | CQD16M | CQD20M | |||
| 1.3 | Power Type | Electric | ||||
| 1.4 | Type of Operation | Stand-on | ||||
| 1.5 | Steering Mode | Electric Power Steering | ||||
| 1.6 | Load Capacity/Rated Load | Q | kg | 1600 | 2000 | |
| 1.7 | Load Center Distance | C | mm | 600 | 600 | |
| 1.8 | Load distance, the center of drive axle to fork | x | 160 | 160 | ||
| 1.9 | Wheelbase | y | mm | 1440 | 1610 | |
| Weight | 2.0 | Total Weight (with Battery) | kg | 1980 | 2000 | |
| 2.1 | Axle Load (laden):Drive side/Load-bearing side | / | 1 | |||
| 2.3 | Axle Load (unladen):Drive side/Load-bearing side | kg | / | / | ||
| Dimension | 3.1 | Overall Length (Pedal Retracted/Expanded) | L1/L2 | 2335/2750 | 2435/2870 | |
| 3.2 | Overall Width | W1/W2 | mm | 880/1030 | 880/1030 | |
| 3.3 | Lift Height | h1 | mm | 3000 | 3000 | |
| 3.4 | Height with Mast Lowered | h2 | 2040 | 2040 | ||
| 3.5 | Height with Mast Extended | h4 | mm | 3855 | 3855 | |
| 3.6 | Free Lift Height | h5 | / | / | ||
| 3.7 | Fork Dimension | l/e/s | mm | 1070×100×40 | 1070×122×40 | |
| 3.8 | Fork Mounting Class | 2A | 2A | |||
| 3.9 | Fork Carriage Spread Width | b2 | mm | 220-690 | 220-690 | |
| 3.1 | Fork Carriage Tilt forward/backward | α/β | ° | 2/4 | 2/4 | |
| 3.11 | Inner Width of Straddle Leg | b3 | 748 | 748 | ||
| 3.12 | Reach Distance | L3 | mm | 580 | 680 | |
| 3.13 | Height of Straddle Leg | h6 | mm | 235 | 235 | |
| 3.14 | Ground Clearance at the Center of Wheelbase (Min.) | m1 | 55 | 55 | ||
| 3.15 | Height of Operating Handlebar (Min./Max) | h14 | mm | 1000/1450 | 1000/1450 | |
| 3.16 | Turning Radius (Pedal Retracted/Expanded) | Wa | 1710/2145 | 1910/2340 | ||
| 3.17 | Min.Aisle Width (Pallet size 1000*1200)(PedalRetracted/Expanded) | Ast | mm | 2835/3270 | 2955/3485 | |
| 3.18 | Min.Aisle Width (Pallet size 800*1200)(Pedal Retracted/Expanded) | Ast | mm | 2785/3220 | 2900/3330 | |
| Tyre | 4.1 | Tyre Type | Polyurethane | Polyurethane | ||
| 4.2 | Tyre Size (Front) | φ210x85 | φ210x85 | |||
| 4.3 | Tyre Size (Balance Wheel) | mm | φ115x55 | φ115x55 | ||
| 4.4 | Tyre Size (Driving Wheel) | mm | φ230x75 | φ230x75 | ||
| 4.5 | Wheels Quantity, Front/Rear (x=Driving Wheels) | 2/1x+2 | 2/1x+2 | |||
| Performance | 5.1 | Traveling Speed (Laden/Unladen) | Km/h | 5/5.5 | 4/5 | |
| 5.2 | Lifting Speed(Laden/Unladen) | mm/s | 80/130 | 80/130 | ||
| 5.3 | Lowering Speed (Laden/Unladen) | mm/s | 150/100 | 150/100 | ||
| 5.4 | Max. Gradient Performance S2 5min (Laden/Unladen) | % | 5/8 | 4/8 | ||
| 5.5 | Service Brake Type | Electromagnetic | Electromagnetic | |||
| 5.6 | Parking Brake Type | Electromagnetic | Electromagnetic | |||
| Power Unit | 6.1 | Drive Motor Rating (AC) S2-60min | 1.5 | 1.5 | ||
| 6.2 | Lift Motor Rating (DC) S3 15% | kW | 3 | 3 | ||
| 6.3 | Battery Voltage/Capacity K5 | V/Ah | 24/240 | 24/240 | ||
| 6.4 | Battery Weight | kg | 200 | 200 | ||
| Others | 7.1 | Controller Brand | CURTIS | CURTIS | ||
| 7.2 | Controller Model | 1232E | 1232E | |||
| 7.3 | Sound Level at Driver's Ear According to EN12053 | dB | 70 | 70 | ||
